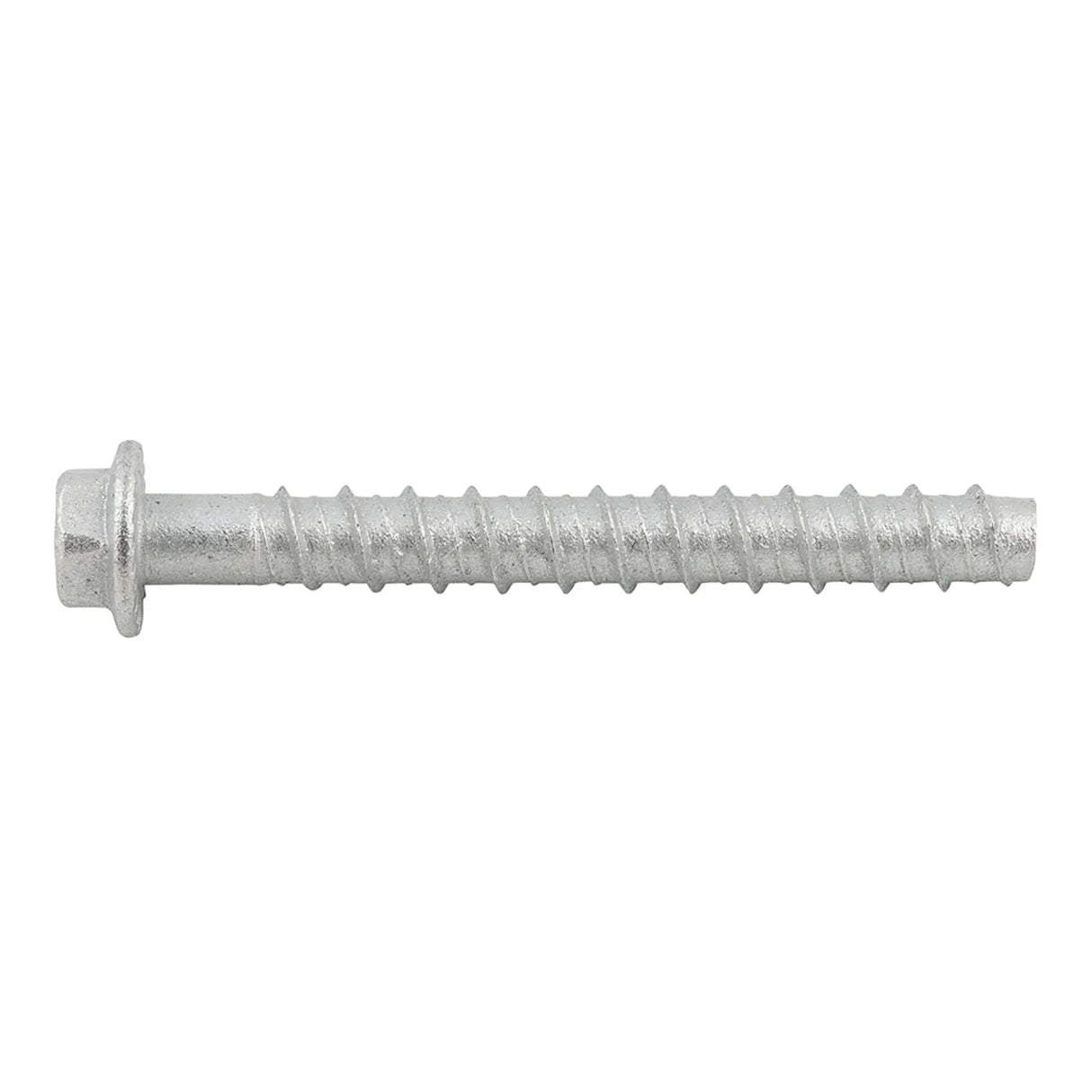

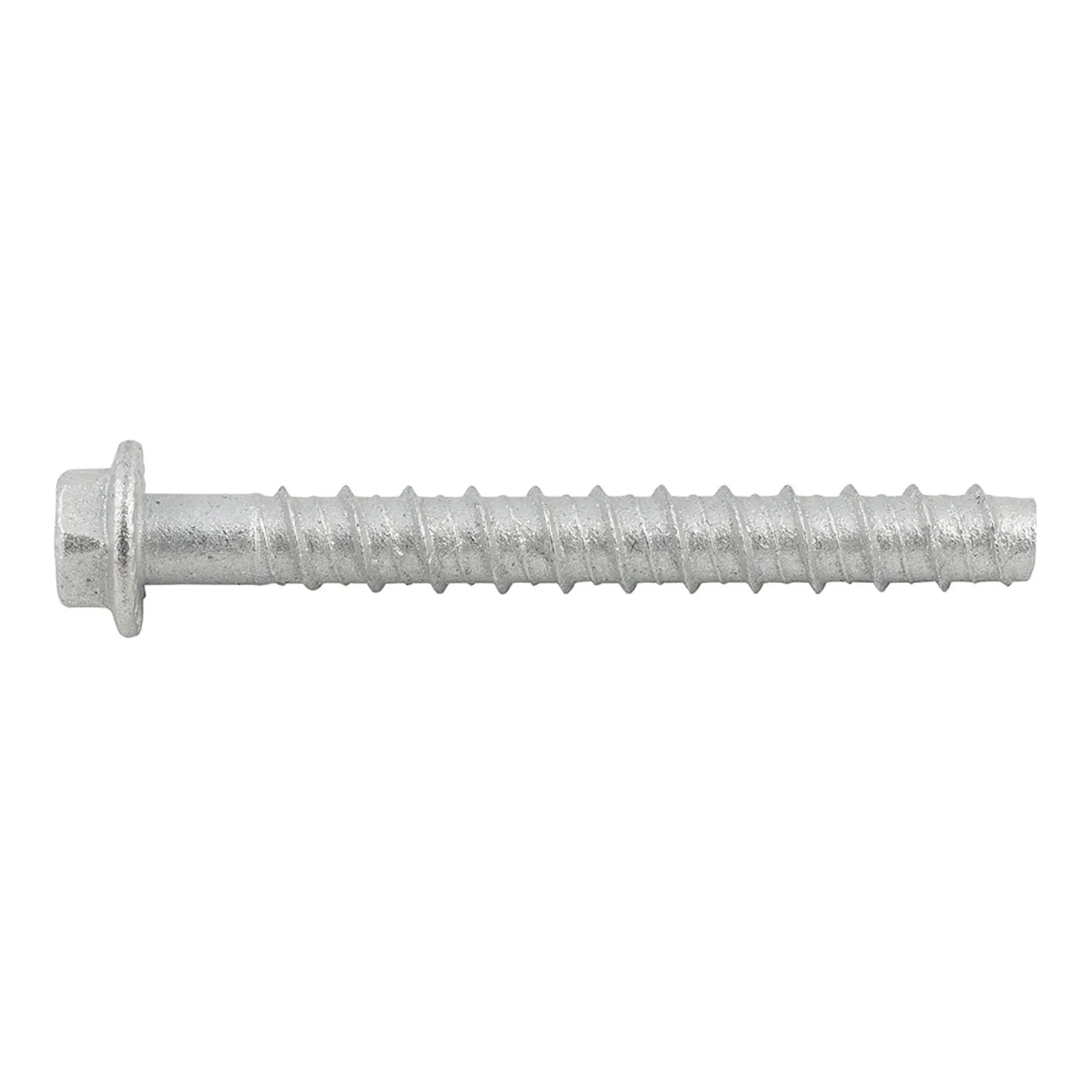

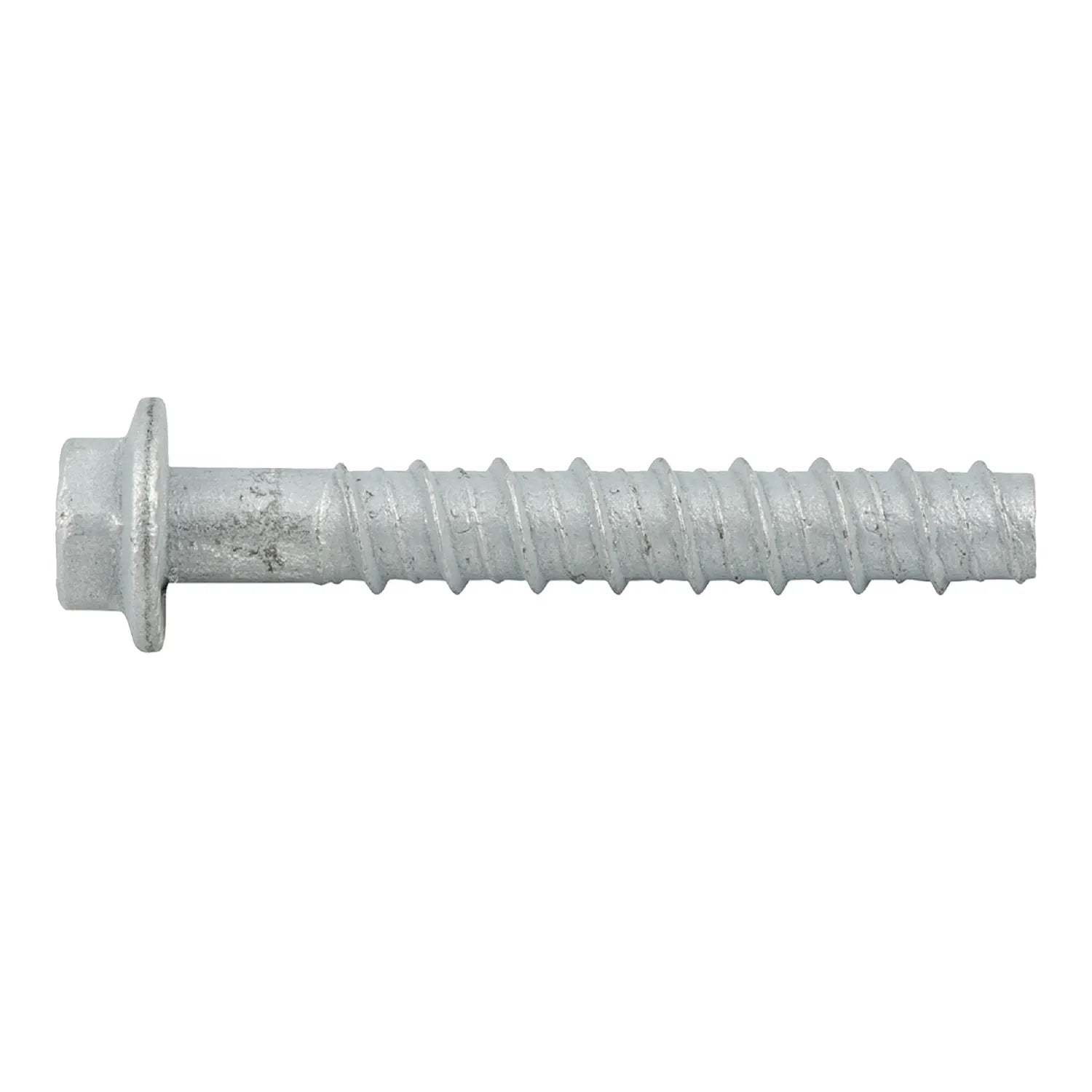

Ramset AnkaScrew™ WERCS™ Flanged Hex Anchor 10mm Galvanised

75mm |SKU: AS10075WGM
Regular price$2.39 inc. GST
per m²
Ramset AnkaScrew™ WERCS™ is a medium duty screw in anchor designed for fastening into concrete, brick and block without expansion pressure.
Length
Minimum order quantity applies for this option.

Description

Ramset AnkaScrew™ WERCS™ is a medium duty screw in anchor designed for fastening into concrete, brick and block without expansion pressure. With a thread forming design and flanged hex head, it delivers strong holding capacity while allowing close to edge installation and full removability for flexible site use.

• 10mm diameter screw in anchor for masonry fixing
• Available in 75mm and 100mm anchor lengths
• Thread forming design for strong clamp force and holding power
• Non expansion anchor for close to edge and close spacing installation
• 100% removable for temporary or adjustable fixing
• Mechanically galvanised finish for corrosion resistance
• Flanged hex head for secure installation with socket drive
• Suitable for concrete, solid and hollow brick, and block

A reliable anchoring option for general construction and structural fixing where strength, flexibility and clean installation are required.

Specifications

  • Brand
    Ramset
  • Product codes
    AS10075WGM, AS10100WGM
  • Diameter
    10mm
  • Length
    75mm, 100mm
  • Max fixture thickness
    25mm, 50mm
  • Drill hole diameter
    10mm
  • Minimum hole depth
    95mm, 120mm
  • Fixture hole diameter
    13mm
  • Socket size
    15mm
  • Material
    High carbon steel
  • Finish
    Mechanically galvanised
  • Head type
    Flanged hex
  • Anchoring method
    Thread forming
  • Substrates
    Concrete, solid brick, hollow brick, solid block, hollow block
